N Scale Bethlehem Steel 3600 Cubic Foot Quad Hopper

These distinctive 100-ton quad hoppers match the Union Pacific specification and were built by Bethlehem Steel in the 1970s. Our UP replicas represent more than 6,400 “quad” hoppers, UP’s largest fleet of coal hoppers in company history.

The Tangent Scale Models prototype replica of the Union Pacific Bethlehem design quad hopper has never been produced in N scale, making it a distinctive addition to any freight car fleet. Our stunning N Scale Quad Hopper model is loaded with detail. We set out to produce an N Scale car that is worthy of the Tangent brand, bringing as much of our industry-leading HO Scale execution and detail as possible packed in an N Scale box.

With these cars wandering far beyond just UP rails in both unit and carload services, consider adding some of these replicas to your layout or collection.

So far we have produced 13 different paint schemes:

N Scale UP Hopper Catalog - Page 1

N Scale UP Hopper Catalog - Page 1

(click to enlarge)

We maintain strong emphasis on accurate reproduction of the prototype, as well as disciplined execution of each model. Finally, we design our products to be utilized in operating environments. Notable callouts for our new UP Bethlehem Steel 3600 Cubic Foot Quad Hopper include:

      • Highly accurate “true to life” colors
      • Exact fonts and lettering placement. Read the accurate 1” COTS boxes!
      • Painted wire coupler lift bars for strength and durability
      • Real rubber flexible air hoses
      • Thin-profile brake piping
      • See-through etched metal brake platform
      • L-shaped end-sheet supports
      • Interior bracing detail
      • Body-mounted Draft Gear with MT-compatible couplers
      • Ready-to-operate model with hidden weights
      • 100-ton trucks and 36” CNC free-rolling precision metal wheels with front and back profile
      • Our N Scale Bethlehem Steel Quad Hopper does not compromise to operate on toy train curves – we suggest a minimum radius of 18.75” or greater (see comments below about modifications you can make to the models to get them down to 11″ radius curves)
      • A “Tangent-accurate” non-symmetrical, properly-sloped coal load
      • Dimensional accuracy – scaled from prototype plans
      • Car number selection process – we select car numbers from our personal photo collection, online and published sources, focusing on late era numbers to represent more than 40 years in continuous operation
      • Recommended age 14 years and older

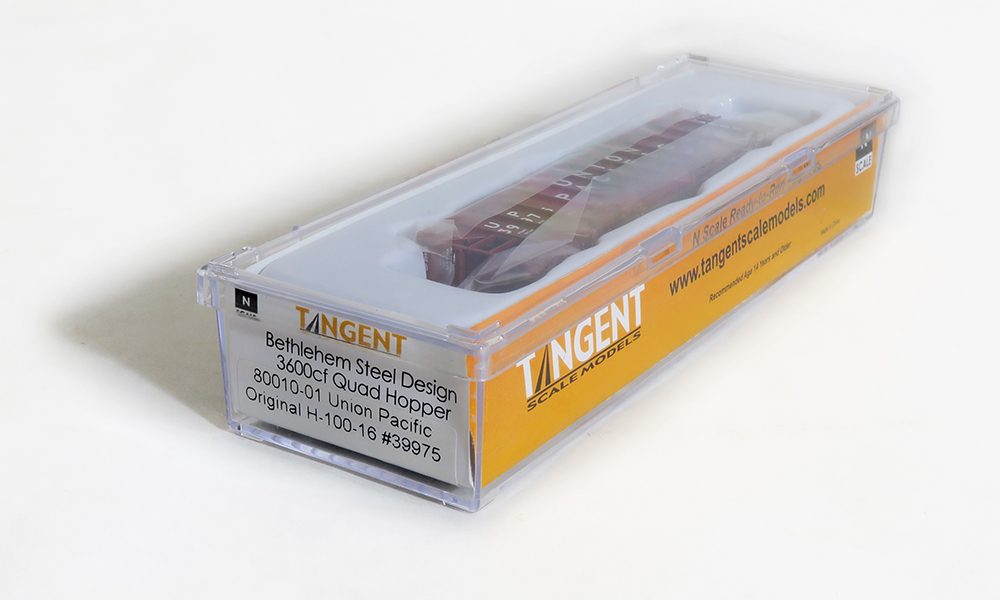

      • Our models come in plastic jewel boxes!

    Our minimum radius is not a typo. We calculated the 18.75″ by running the car on curves until we did not “feel” any rubbing of the wheels against the air hose and draft gear key details — some of the same details that make the car a Tangent quality product that sits at the right height (yet work with the larger than scale coupler box required for MT-compatible couplers).  Can you run the car on smaller radius curves? Yes, with adjustment of the model.  Here is how:

  • 1. If you remove the 2 rubber air hoses from the model (Needle nose pliers pull them right off from their 2-pin mounts), then the car will FREELY roll on a 15″ radius curve.

    2. If you further “modify” the car by taking a #11 X-acto blade and slicing off the “nub” face of the draft key detail molded onto the side of the draft gear box (about 20 seconds of work), then the car will FREELY roll on a 12.5″ radius curve.

    Further reduction in minimum radius is possible, but results in increasing degrees of “rubbing” and that is up to the pain threshold of the modeler.

    We want our official documentation to reflect the out-of-the-box radius, hence the 18.75″ stated here.

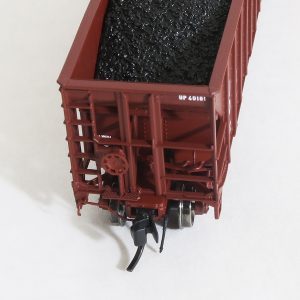

  • (click to enlarge model photos below!  Use your Browser back button to return…)
  •



  • Prototype Information – Bethlehem-design UP Quad Hopper
  • These cars represent UP’s largest fleet of coal hoppers in company history. First produced in 1974 by Bethlehem Steel as UP class H-100-10, production of a majority of the fleet occurred in UP’s Albina Shops in Portland OR between 1976 and 1981. Production of this important fleet ended with the H-100-23 class, after UP placed more than 6,400 of these “quad” hoppers in service in the rapidly-growing Western low-sulfur coal market. These cars became the workhorses of the UP coal fleet, serving coal originations in Wyoming, Utah, Colorado, and the PowderRiver Basin, and sometimes on non-UP coal originations such as DRGW, Utah, and Wyoming & Colorado (former UP branchline). The DRGW origins became part of Union Pacific in 1996, and to this day these mines continue to load these UP quad hoppers!UP’s quad hoppers wandered both systemwide and to offline railroads as customers sourced coal from a variety of origins. A sample destination to the west that received coal in these hoppers was Southern California’s Kaiser Steel located in FontanaCA, as well as the bulk export terminal at San Pedro. Trains of quad hoppers for these customers operated over CajonPass with various motive power groupings, most notably mixed DRGW and UP power (plus helpers). A few sample eastern gateways in early years were the Commonwealth Edison Co. power plants at Waukegan IL and Hammond IN, Kansas City Power & Light at Kansas City MO, Illinois Central destinations for TVA in Kentucky, not to mention Eastern and Midwestern carriers both in carload (sourced for cement and other production purposes) and unit train services. These quad hoppers continue to serve, operating to customers without dedicated bank-owned coal sets, as well as services literally anywhere when customers in North America want to increase coal deliveries from UP sources. Finally, the quad hoppers have been spotted in non-coal services such as miscellaneous aggregates, coke, and sugar beet services.On this page we have included an updated gallery of prototype photos to show you some of the major paint schemes in service, a free service from Tangent Scale Models. We believe that an educated customer is a happy customer. All images below can be enlarged.

    First, here is a shot of both freight car red (Tangent scheme #1) and black and yellow (Tangent scheme #2) original paint UP quad hoppers waiting for loading in Cheyenne WY in either late 1978 or 1979.

    UPCheyenne1977_500

    Next is an example photo from 1980, where a trainload of original paint black and yellow quad hoppers (Tangent scheme #2) are rolling on the UP mainline Eastbound at Buda NE behind a trio of GEs.

    UPHoppersEBBudaNE_500

    Due to its proximity to a major metropolitan area, perhaps no locale is better documented than the UP quads moving across Cajon Pass to the Port of LA and San Pedro and Kaiser Steel in Fontana. The varied locomotive consists with power belonging to UP and/or DRGW, as well as helpers from UP or ATSF, made these trains unforgettable. Today these trains still ply Cajon. In 1975, a shot of combined DRGW and UP power haul a train of UP freight car red quad hoppers (Tangent scheme #1) over CajonPass. You have the locomotives from the other guys. Now you can have the cars!

    UP3644DRGW_500

    Following up on the above image, here is another one from the CajonPass area. This image shows a coal train descending CajonPass just to the west of Summit. This is a train of export coal. Note the mixed hoppers in the train, including the Tangent Scale Models UP quad hoppers.

    UP9389_Export_Coal_500

    One example of UP quad hoppers being used for non-coal shipments was the use of sugar beets within the Pacific Northwest. A Mainline Modeler article from 1995 by Thorton Waite described the operation, and showed the UP quad hoppers in action. Pictured are original paint oxide red cars (Tangent scheme #1 and #10).

    MainlineModExcerpt_500

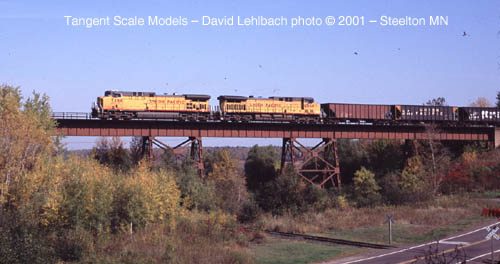

    In 2001, two UP C44ACs Location are near the St.Louis River Bridge at Steelton, MN. This is a train of all-rail ore empties UP is delivering to Steelton and the DM&IR crew will eventually climb on board and use the run-thru engines to take train to Minntac to load pellets, then return it to UP. So here is a case of cars being used on DMIR! While the consist is mixed hoppers (although a majority are UP quad hoppers), note that the second car in the train is a “double rotary” car (Tangent scheme #3).

    UP45898inTrain_500

    In recent years, some UP quads have been utilized in company MOW service. Here is a shot of an original paint red UP quad hopper (Tangent scheme #1 and #10) hauling used railroad ties. Click here to see the image.

    Bethlehem-design UP Quad Hoppers were also seen in other offline locales away from the UP system. This montage of switch lists and snapshot document the very regular offline move of UP coal from the HannaBasin to railroad partner IllinoisCentralGulf. These UP quad hoppers (Tangent scheme #1) were loaded for the Illinois Electric Power plant at Baldwin IL, and were routed to Kansas City via UP where they were delivered to ICG. This move still happens today using these same hoppers, although the coal originates on the former DRGW.

    ICGSpartaDistrict_350

    In 1988, a set of 3 CNW SD40-2s pull a set of UP black quad hoppers (Tangent scheme #2) past Dayton’s Bluff MN, just outside St. Paul.

    CNWStPaul_500

    In 1980, an Alco RSD-4 is the subject of the image at ProvoUT, with a set of red UP quad hoppers (Tangent scheme #1) in the background. Please click here to see the image.

    Operating in general manifest service – not in unit trains – here is a link to a UP quad hopper offline on CSXT in recent years, in OH, IN, and MI. UP quads have been cited far and wide in offline applications such as these.

    Please click here for an example in offline coke service.

    Please click here for an example of an offline empty move.

    Please click here for an example in offline aggregate service.

    There are other examples of these as well that support these cars far and wide.
